Hi, I recently got a Aurender W20se and try to hoop up to Rossini apex using two aeu cables. W20se’s aeu sockets indicate “L” and “R” while Rossini’s aeu sockets say “1” and “2”
. Where do I have to connect two 110ohm aeu cable to each component?

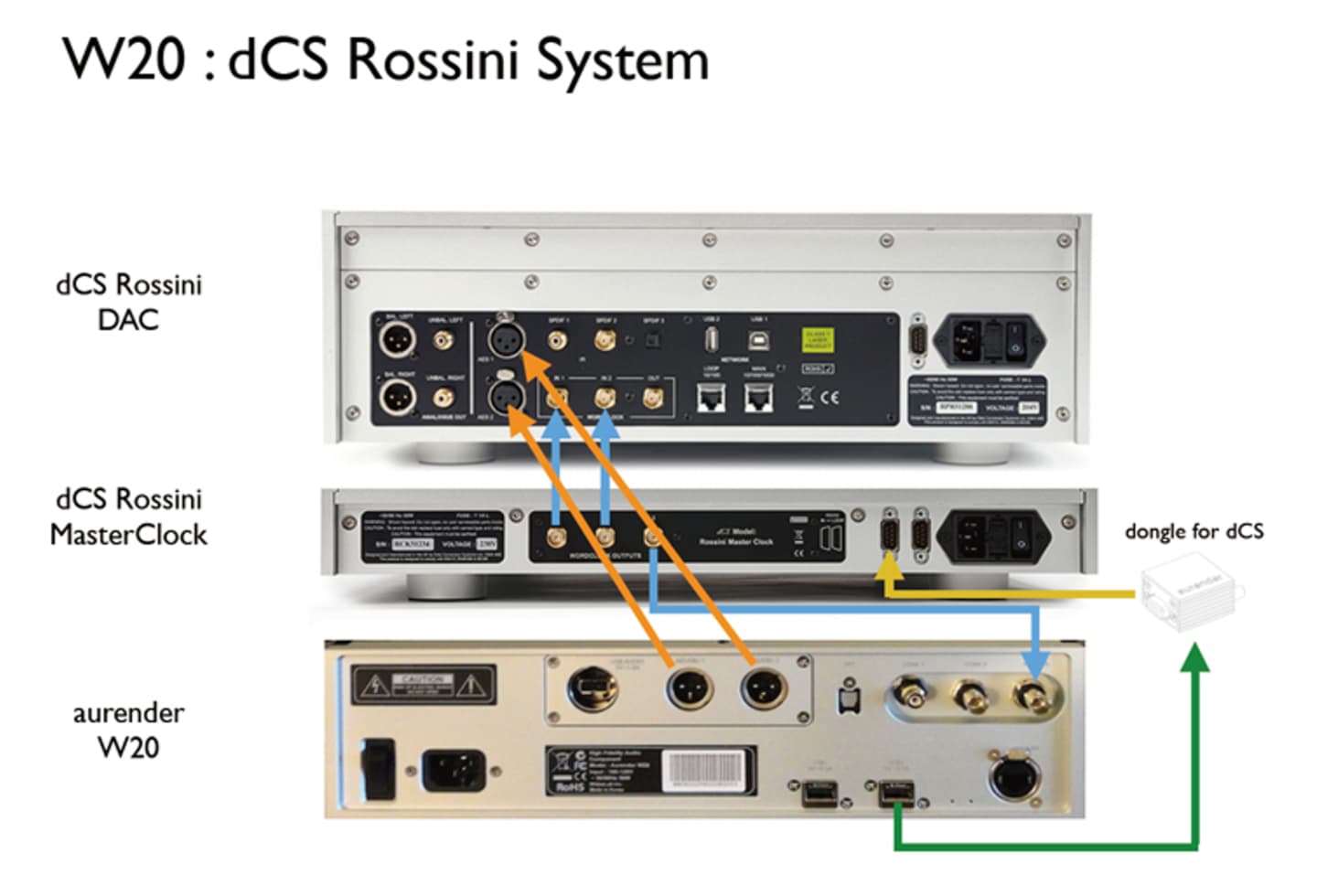

You have a couple of choices with clocking.
If you have the Rossini clock you can connect to the Aurender as long as you have the Aurender dCS dongle (which as far as I can tell Aurender has withdrawn but can still be found on the market).
If not you have two options:
- If you have a 75Ω BNC cable you can connect the Clock Out on your Rossini DAC to the Clock In on the Aurender and set the clocking mode on your Rossini to M (Master)
- If you don’t then set the clocking mode on your Rossini to A (Audio)
Yes. Make sure that you use properly specified cables with 1110 ohm impedence and not simply a cable with XLR terminations.
Thks, I use a pair of 110 ohm aeu digital cable
Thank for advice!
I will may add clock later ^^
